Config File
To change any persistent settings that apply to the Jumperless as a whole, there's a config file. You can read it with ~ and edit settings by copying any of those lines, pasting it back, and changing the value to whatever you want it to be.

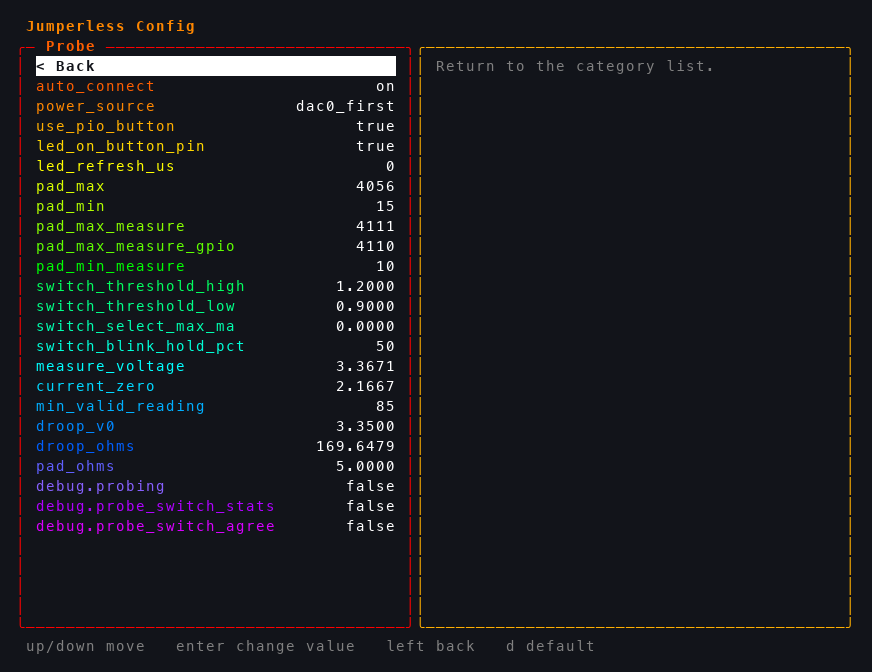

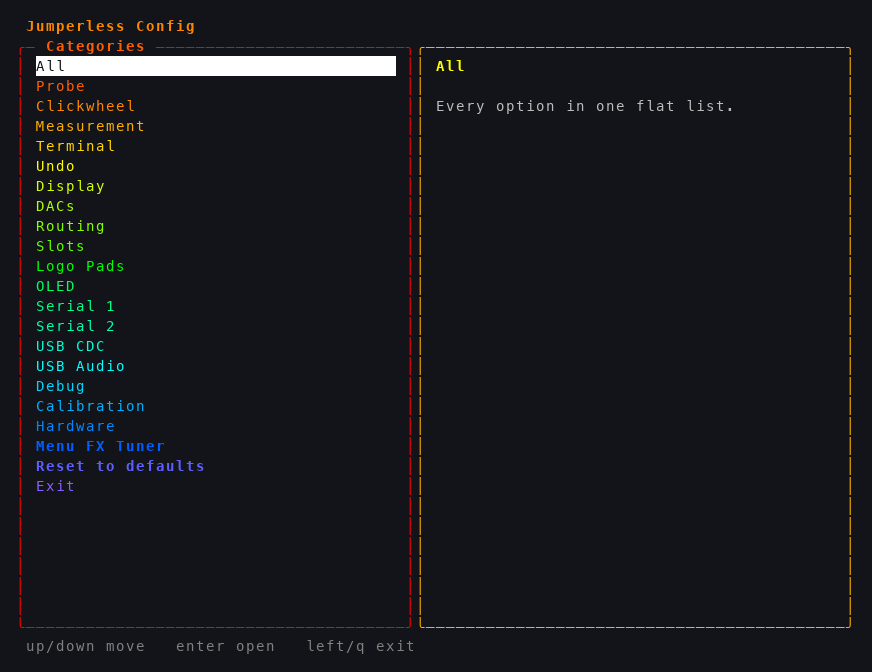

Viewing Config.txt
You can enter ~ to print the config.
~
copy / edit / paste any of these lines
into the main menu to change a setting
Jumperless Config:
`[config] firmware_version = 5.6.5.15;
`[hardware] generation = 5;
`[hardware] revision = 7;
`[hardware] probe_revision = 5;
`[hardware] psram_installed = 0;
`[dacs] set_dacs_on_boot = false;
`[dacs] set_rails_on_boot = true;
`[dacs] probe_power_dac = 0;
`[dacs] auto_connect_probe = 1;
`[dacs] limit_max = 8.00;
`[dacs] limit_min = -8.00;
`[debug] file_parsing = false;
`[debug] net_manager = false;
`[debug] nets_to_chips = false;
`[debug] nets_to_chips_alt = false;
`[debug] leds = false;
`[debug] probing = false;
`[debug] oled = false;
`[debug] logo_pads = false;
`[debug] logic_analyzer = true;
`[debug] arduino = 0;
`[debug] usb_mass_storage = false;
`[routing] stack_paths = 2;
`[routing] stack_rails = 3;
`[routing] stack_dacs = 0;
`[routing] rail_priority = 1;
`[calibration] top_rail_zero = 1655;
`[calibration] top_rail_spread = 18.80;
`[calibration] bottom_rail_zero = 1655;
`[calibration] bottom_rail_spread = 19.27;
`[calibration] dac_0_zero = 1655;
`[calibration] dac_0_spread = 19.53;
`[calibration] dac_1_zero = 1650;
`[calibration] dac_1_spread = 19.44;
`[calibration] adc_0_zero = 8.95;
`[calibration] adc_0_spread = 17.89;
`[calibration] adc_1_zero = 8.91;
`[calibration] adc_1_spread = 17.81;
`[calibration] adc_2_zero = 8.97;
`[calibration] adc_2_spread = 17.90;
`[calibration] adc_3_zero = 8.89;
`[calibration] adc_3_spread = 17.79;
`[calibration] adc_4_zero = 0.00;
`[calibration] adc_4_spread = 4.86;
`[calibration] adc_7_zero = 9.24;
`[calibration] adc_7_spread = 18.34;
`[calibration] probe_max = 4055;
`[calibration] probe_min = 25;
`[calibration] probe_switch_threshold_high = 1.30;
`[calibration] probe_switch_threshold_low = 1.14;
`[calibration] probe_switch_threshold = 0.40;
`[calibration] measure_mode_output_voltage = 3.27;
`[calibration] probe_current_zero = 2.41;
`[calibration] minimum_probe_reading = 85;
`[logo_pads] top_guy = uart_tx;
`[logo_pads] bottom_guy = uart_rx;
`[logo_pads] building_pad_top = isense_pos;
`[logo_pads] building_pad_bottom = isense-;
`[logo_pads] repeat_ms = 100;

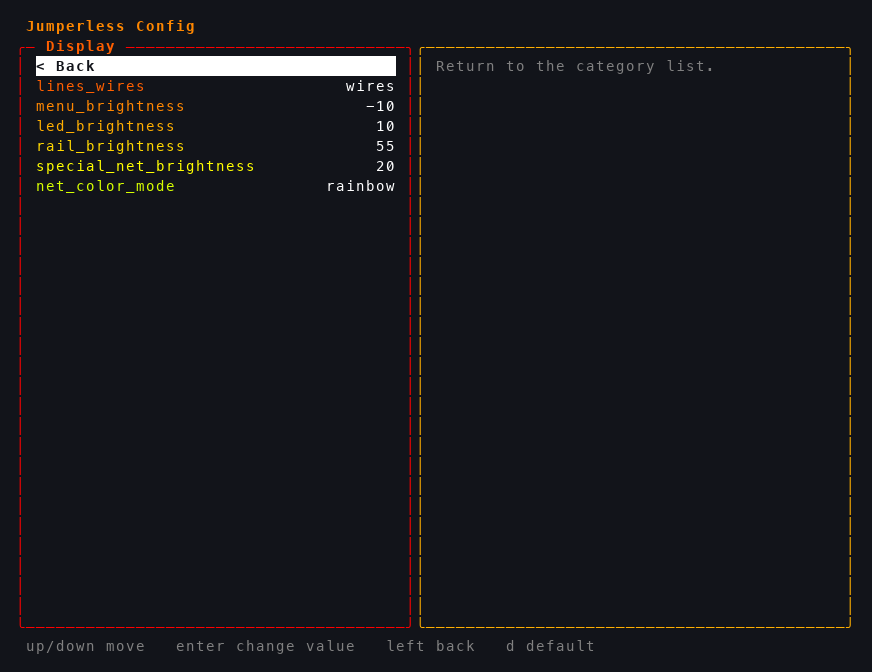

`[display] lines_wires = wires;
`[display] menu_brightness = -10;
`[display] led_brightness = 10;
`[display] rail_brightness = 55;
`[display] special_net_brightness = 20;
`[display] net_color_mode = rainbow;
`[display] dump_leds = ;
`[display] dump_format = image;
`[display] terminal_line_buffering = 0;
`[serial_1] function = passthrough;
`[serial_1] baud_rate = 115200;
`[serial_1] print_passthrough = false;
`[serial_1] connect_on_boot = false;
`[serial_1] lock_connection = false;
`[serial_1] autoconnect_flashing = true;
`[serial_1] async_passthrough = true;
`[serial_1] tag_parsing = enabled;
`[serial_1] flash_reset_type = avr;
`[serial_2] function = micropython;
`[serial_2] baud_rate = 115200;
`[serial_2] print_passthrough = false;
`[serial_2] connect_on_boot = false;
`[serial_2] lock_connection = false;
`[serial_2] autoconnect_flashing = false;
`[top_oled] enabled = true;
`[top_oled] i2c_address = 0x3C;
`[top_oled] width = 128;
`[top_oled] height = 32;
`[top_oled] connection_type = i2c0;
`[top_oled] sda_pin = 4;
`[top_oled] scl_pin = 5;
`[top_oled] gpio_sda = GP_4;
`[top_oled] gpio_scl = GP_5;
`[top_oled] sda_row = -1;
`[top_oled] scl_row = -1;
`[top_oled] connect_on_boot = true;
`[top_oled] lock_connection = false;
`[top_oled] show_in_terminal = false;
`[top_oled] font = BerkMono;
`[top_oled] startup_message = images/bubbleJumpThin.bin
`[usb_cdc] ignore_dtr = false;
This is just a file on your filesystem called config.txt and just editing that file directly works too.
Config Help
There's also a help you can get to by entering ~?
~?
Help for command: ~
Read config
~ = show current config
~names = show names for settings
~numbers = show numbers for settings
~[section] = show specific section (e.g. ~[routing])
Write config
`[section] setting = value; = enter config settings (pro tip: copy/paste setting from ~ output and just change the value)
Reset config
`reset = reset to defaults (keeps calibration and hardware version)
`reset_hardware = reset hardware settings (keeps calibration)
`reset_calibration = reset calibration settings (keeps hardware version)
`reset_all = reset to defaults and clear all settings
`force_first_start = clears everything to factory settings and runs first startup calibration
Help
~? = show this help
State File
States vs Config
States are now saved as YAML and we did away with the old text file format. globalState holds all connections, paths, and other circuit configuration in a single object that most of the code uses now.
State vs Config - What's the Difference?
- State stores things relevant to the currently loaded slot - connections, wire colors, rail voltages, GPIO settings. These change when you switch slots.
- Config (config.txt) contains hardware-wide settings that apply to the entire Jumperless regardless of which slot is active.
Rail voltages, GPIO settings, and other circuit-specific parameters now go with the state (in the YAML file) rather than config, so each slot can have its own power supply and GPIO configuration.
State File Structure
For things specific to the current state of the Jumperless, there's a YAML file that contains all the connections, colors (optional), rail / DAC voltages, GPIO directions and pulls, stuff like that. The idea is this defines a complete setup of a particular circuit that can be switched between in different slots.
The Jumperless always boots at Slot 0, and you can switch to other slots with < (cycle through them) or selecting one with the click menu with Slots > Load > 0-7 (it will show a preview of each one.) To save a copy of the currently active slot;
Slots > Save > 0-7 will save a copy of the active slot to another slot and also make that target slot the active.
╭────────────────────────────────────╮
│ Current YAML State (RAM) │
╰────────────────────────────────────╯
Active Slot: 0
Dirty Flag: NO (saved)
─── YAML Output ───
version: 2
sourceOfTruth: bridges
bridges:
- {n1: 38, n2: 44, dup: 2}
- {n1: 21, n2: 28, dup: 2}
- {n1: 48, n2: 55, dup: 2}
- {n1: 4, n2: 2, dup: 2}
- {n1: BUFFER_IN, n2: DAC0, dup: 1}
nets:
- {num: 4, nodes: [DAC_0, BUF_IN], name: "DAC 0", anim: true}
- {num: 6, nodes: [38, 44], color: pink}
- {num: 7, nodes: [21, 28], color: blue}
- {num: 8, nodes: [48, 55], color: green}
- {num: 9, nodes: [4, 2], color: amber}
power:
topRail: 3.30
bottomRail: 2.50
dac0: 3.30
dac1: 0.00
config:
routing: {stackPaths: 2, stackRails: 3, stackDacs: 0, railPriority: 1}
gpio:
direction: [1,1,1,1,1,1,1,1,1,1]
pulls: [0,0,0,0,0,0,0,0,0,0]
pwmFrequency: [1.00,1.00,1.00,1.00,1.00,1.00,1.00,1.00,1.00,1.00]
pwmDutyCycle: [0.50,0.50,0.50,0.50,0.50,0.50,0.50,0.50,0.50,0.50]
pwmEnabled: [0,0,0,0,0,0,0,0,0,0]
uart: {txFunction: 0, rxFunction: 1}
oled: {connected: false, lockConnection: false}
─── Memory Usage ───
Connections: 5
State RAM: ~58048 bytes
Source of Truth
Because the information in here is sort of redundant (the connections could be computed from just the bridges or the nets section on their own), there's a field called sourceOfTruth which is the section that actually gets parsed and then the other section is written with the computed values. (I haven't done much testing on changing this to nets so I'd probably just leave it on bridges for now.)
There's some weirdness with how colors are applied, since the source of truth is the bridges, and the things that actually get colored are the nets, it'll take the colors from the bridges (if specified) and try to apply them to the nets. But since nets always have a single color (to show that they're connected), if you have bridges with different colors in the same net, it'll just pick one (don't ask me exactly how the logic chooses, idk.)
If you specify a color to a net even with sourceOfTruth: bridges it should respect the net assignment over the bridge assignment.
Switching Between Saved Circuits (Slots)
The Jumperless has 8 slots (0-7) where you can save different circuit configurations. Think of them like presets or save files.
Quick slot cycling:
- Type < in the terminal to cycle to the next slot
Other slot commands:
- l 5 - Load slot 5 specifically
- Q - Query which slot is currently active
- s - Show a list of all saved slots
When you make connections with the probe, they're automatically saved to whichever slot is currently active. See the Glossary for more details about slots.
Live Editing State Files
You can edit the YAML slot files and they will live update to the board! Whether you're editing them in the onboard eKilo editor or as a mounted USB MSC device on your computer, changes will be reflected immediately on your Jumperless.
